Optimize Energy Efficiency With Energy Recovery

Our static-plate, cross-flow core separates the outgoing, polluted indoor airstream from the incoming fresh airstream-while simultaneously transferring total energy (heat and water vapor) between the two. Airstreams do not mix and pollutants are not transferred across partition plates. In the winter, that means that the cold, dry outside air is preheated and humidified by the outgoing warm interior air. And in the summer, the warm, humid outside air is precooled and dehumidified by the outgoing air­conditioned interior air.

ERV Static Plate Core

Low-to-zero Exhaust Air Transfer Ratio (EATR) at balanced static
pressure differentials

Temper The Air

Incoming outdoor air is preconditioned by outgoing indoor air

Commercial Energy Recovery Ventilation

The packaged solutions of the HE Series and the large capacity of the LE Series offer a wide airflow range, as well as static capacities. These innovative commercial ERVs can be applied in every type of building in every climate to maximize energy efficiency, downsize HVAC equipment and reduce costs.

    • Packaged solutions

    • Indoor/outdoor

    • 250-7,950 CFM

    • Large capacity

    • Indoor/outdoor

    • 1,500-11,000 CFM

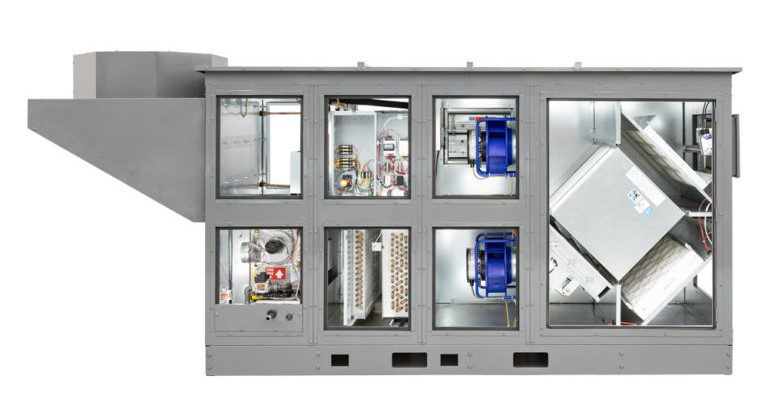

Dedicated Outdoor Air Systems (DOAS) With Energy Recovery

By enabling HVAC units to operate independently, depending on building load, our DOAS unit with fixed-plate energy recovery, innovative packaged refrigeration/cooling and heating features and hot-gas reheat will optimize your ventilation strategy. The results are downsized equipment, decreased capital costs and significant operating savings.

    • DOAS with Packaged Refrigeration

    • Indoor/outdoor

    • 375-4,950 CFM

Applied ERVS

By enabling HVAC units to operate independently, depending on building load, our DOAS unit with fixed-plate energy recovery, innovative packaged refrigeration/cooling and The CA Series modular cabinets house up to four energy recovery cores and can be installed individually or be stacked up to five cabinets high. The PA Series modular arrays of 6, 8, 9 or 12 energy recovery cores can be installed side-by-side for 1,500-unlimited CFM. The SA Series is designed for air-handling Original Equipment Manufacturers (OEMs) and caters to greater airflow needs.

    • Modular cabinets

    • Indoor/outdoor

    • 500-4,400 CFM

    • Stackable to 20,000 CFM

    • Modular panels

    • Indoor

    • 1,500-unlimited CFM

    • Packaged core with plenum assembly

    • Indoor

    • Flexible and modular

    • Large airflow capacities

    • 2,250-70,400 CFM


View Resources:
